This is Cinhpump brand JCA-590A DC long lifetime air pump.
As we know, all the DC brushed air pumps in market are less than 1000 hours lifetime, and small air flowrate, but our JCA-590A DC long lifetime air pump is the exception, because of the unique structure, the lifetime is more than 10times of the brushed air pump, the air flowrate is three times, the most important the noise is much less than brushed air pump.
Product brief description：
DC Electrical Model， Super low Vibration and Silent when operating, lifetime is more than 10000 hours with continually work.
Product parameter:
|
Air output |
13SCFH(6.5lpm) |
|
Air pressure |
3.6PS1(22-25Kpa) |
|
Power requirement |
DC3-24V |
|
Power consumption |
4W |
|
Pump design |
Double Diaphragm, Duckbill Valves |
|
Pump body |
ABS |
|
Out & inlet Dia |
0.22"(5. 5mm) |
|
Electrical connections |
0.72-ft(220mm)Insulated Plug Wire |
|
Noise level |
26db unconnected, connected operation will reduce db level |
|
Dimension(LxWxH) |
3"x2.2"x1.6"(76x56x40mm) |
|
Weight |
0.185kgs |
|
Place of Origin |
Zhejiang China (Mainland) |
|
Brand Name |
Cinhpump |
|
Model Number |
JCA-590A DC model |
|
Theory |
Electromagnetic Pump |
|
Structure |
Diaphragm Pump |
|
Usage |
Air Pump |
|
Power |
Electric |
|
Flowrate |
6.5L/M Air Flowrate |
|
Fuel |
Electric |
|
Pressure |
22-25kPA |
Performance Curve

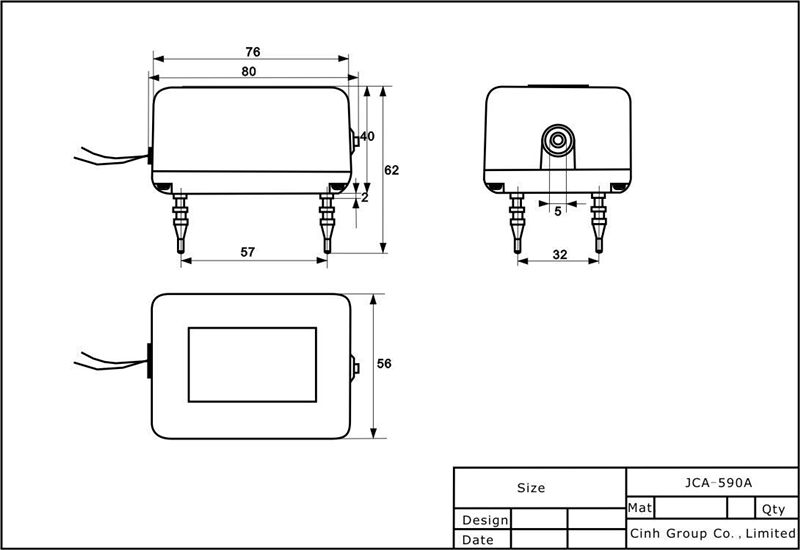

Size
