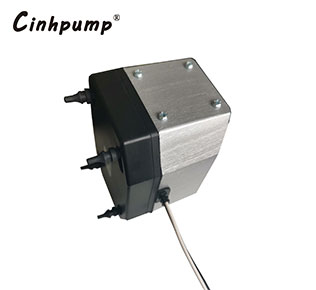

This is Cinhpump brand PMA-15B small vacuum pump.
Introduction
PMA-15B air pump is one blow type and suck type air pump, since excellent vacuum sucking air ability, so we prefer to call it small vacuum pump. This PMA-15B small vacuum pump is one diaphragm structure air pump, its fluid channel is completely sealed, so it can work with gas or liquid, corrosive or normal, even small sand or dust.
Product parameter
|
Air output |
30SCFH(15lpm) |
|
Air pressure/Vacuum pressure |
4.35PSI(30Kpa) / -3.92PSI(-27kpa) |
|
Power requirement |
AC220V/110V/24V/12V DC12V 24V 50Hz/60Hz |
|
Power consumption |
10W |
|
Pump design |
Double Diaphragm, Duckbill Valves |
|
Pump body |
Aluminium |
|
Out & inlet Dia. |
0.3"(7.6mm) |
|
Electrical connections |
1-ft(300mm)Insulated Wire Pair |
|
Noise level |
40db unconnected, connected operation will reduce db level |
|
Dimension(LxWxH) |
4.2"x3"x2.9"(106x76x74mm) |
|
Weight |
0.7kgs |
|
Place of Origin |
Zhejiang China (Mainland) |
|
Brand Name |
Cinhpump |
|
Model Number |
PMA-15B |
|
Theory |
Electromagnetic Pump |
|
Structure |
Diaphragm Pump |
|
Usage |
Air Pump/Vacuum air pump |
|
Power |
Electric |
|
Flowrate |
15L/m |
|
Fuel |
Electric |
|
Pressure |
30kPA/ -27KPA |
Performance Curve
Size
